Yaz0 Format

Yaz0 is a compression algorithm developed by Nintendo. It is a variant of the LZ77 compression algorithm, which reduces file size by replacing repeated sequences of data with references (pointers) to sequences that have already occurred earlier in the file.

File Structure

A Yaz0 file consists of a 16-byte header followed by the compressed data blocks.

../_images/structure1.png

Structure of a Yaz0

How Data block works ?

The compressed data is divided into blocks. Every block starts with a Code Byte.

  • This byte contains 8 bits.

  • We read these bits from left to right (MSB to LSB).

  • Each bit tells the decoder how to read the next chunk of data.

    • If the bit is 1: The next chunk is a single uncompressed byte. Copy it directly to the output.

    • If the bit is 0: The next chunk is a 2-byte or 3-byte pointer that tells the decoder to go back in the output and copy a sequence of bytes.

Decompression

When the bit is 0, you read a 2-byte pointer: Byte1 and Byte2. Let N be the first 4 bits of Byte1:

  • The Offset: Combine the lower 4 bits of Byte1 with the 8 bits of Byte2 to get a 12-bit number.

    Add 1 to this number. This is how many bytes you go backwards in your output buffer to start copying

  • The Length:

    • If N > 0 (2-Byte Encoding): The length is N + 2.

    • If N == 0 (3-Byte Encoding): Read a 3rd byte (Byte3). The length is Byte3 + 0x12.

Flowchart

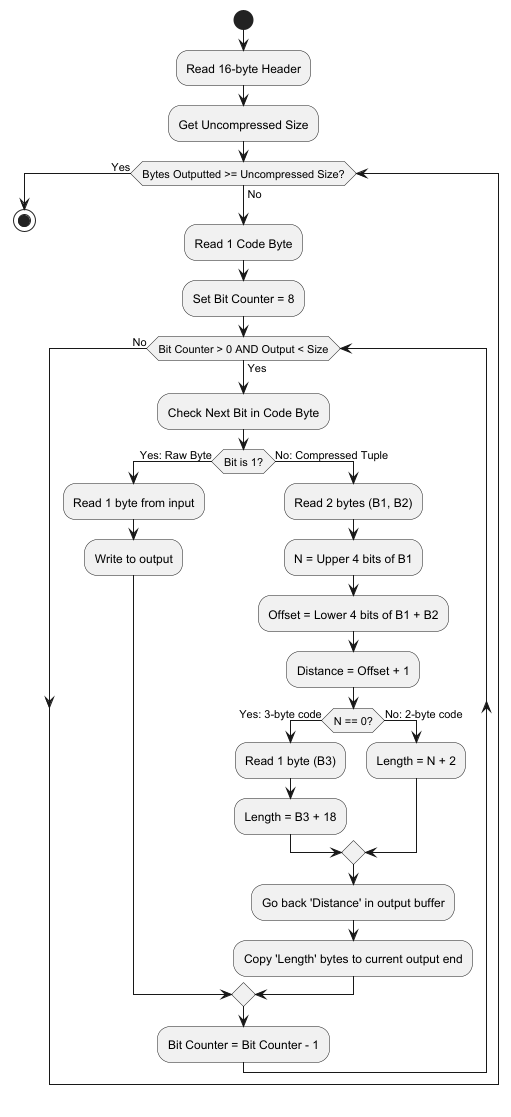

../_images/decompression.png

Decompression flowchart of a Yaz0

Compression

Compressing data into Yaz0 is more complext since it requires a sliding windows to search for the longest matching sequence of bytes.

  • Look at the current position in the uncompressed file

  • Search the last 4096 bytes to find if the current sequence of bytes has appeared before

  • f a match is found and is at least 3 bytes long, calculate the distance (offset) and the length and encode it as a 0 bit followed by a 2-byte or 3-byte pointer

  • Otherwise, leave the byte uncompressed, encode it as a 1 bit and write the raw byte.

  • Group bits into blocks of 8 to create the Code Byte

Flowchart

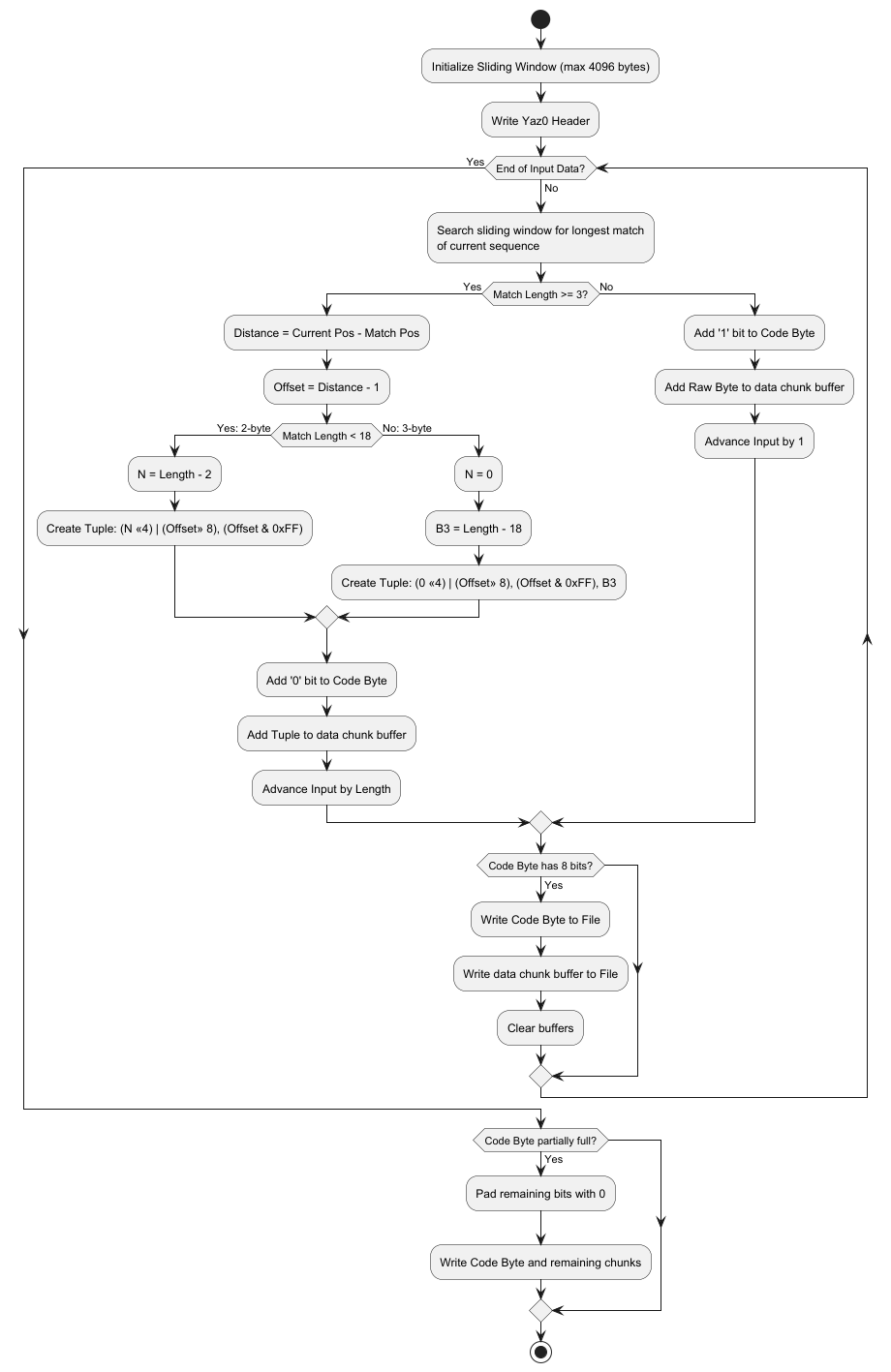

../_images/compression.png

Compression flowchart of a Yaz0
